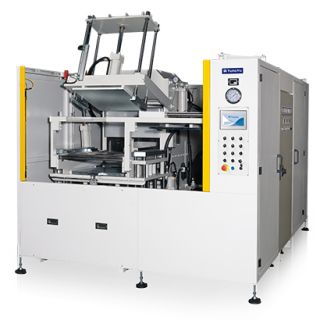

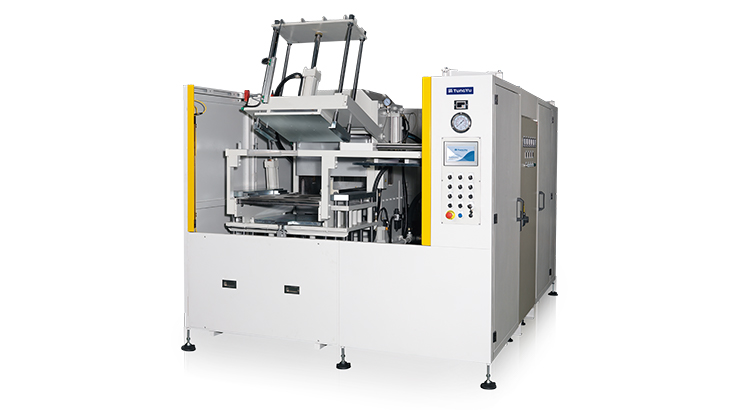

Rubber Oil Seal Vulcanization Molding Machine
-
THP-V-250-3RT-S-PCD
• Clamping Force : 65-125 tons
• Equipped with upper, lower and middle plate to support various mold designs for product ejection.
• Full caging with light curtain for safety operation.
• Automated mold in/out, bumping, and flipping completed in a single cycle, with adjustable stages.
• Simplicity in mechanism for easy maintenance.
• Movable cavity plate shifts to the right for automatic part ejection.
• Could be equipped with conveyor belt for automation system improvement.
• Equipped with upper, lower and middle plate to support various mold designs for product ejection.
• Full caging with light curtain for safety operation.
• Automated mold in/out, bumping, and flipping completed in a single cycle, with adjustable stages.
• Simplicity in mechanism for easy maintenance.
• Movable cavity plate shifts to the right for automatic part ejection.
• Could be equipped with conveyor belt for automation system improvement.
| Machine Type | THP-V-80 | THP-V-100 | THP-V-150 | THP-V-200 | THP-V-250 | |
|---|---|---|---|---|---|---|
| Clamping Force | ton | 80 | 100 | 150 | 200 | 250 |
| Piston Diameter | mm | Ø225 | Ø250 | Ø300 | Ø355 | Ø400 |
| Heating Platen Size | mm | 250x300 | 350x400 | 450x480 | 450x480 | 570x610 |
| Bolster Plate Size | mm | 290x320 | 390x420 | 500x520 | 500x520 | 620x620 |
| Daylight | mm | 200 | ||||
| Stroke | mm | 140 | ||||
| Vacuum Accessories | Vacuum Cover Type | |||||
| Power Consumption | kW | 4.8 | 8.76 | 8.76 | 8.76 | 18.2 |
| Turnover Degree | 60° (2RT) | 45° (2RT) | ||||
| 45° (3RT) | ||||||
| Dimension (mm) | 2RT | 1165 x 1976 x 1987 | 1145 x 2080 x 2000 | 2362 x 1365 x 1982 | 1681 x 2487 x 1960 | 1032 x 3026 x 2085 |
| 3RT | 1534 x 1970 x 1870 | 1510 x 2262 x 1926 | 2362 x 1365 x 1982 | 1981 x 2487 x 1960 | 1718 x 3139 x 2073 | |
