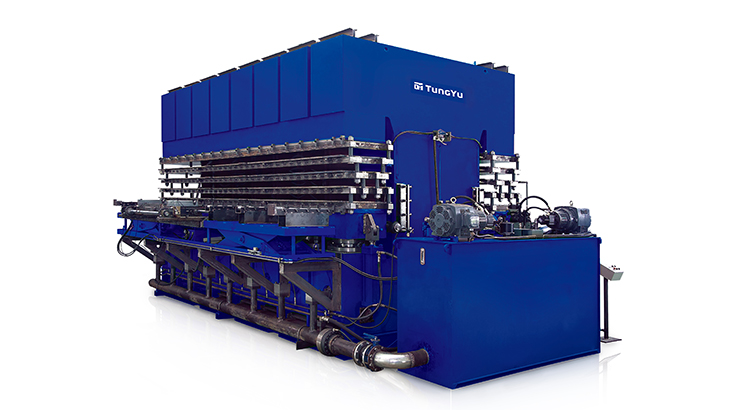

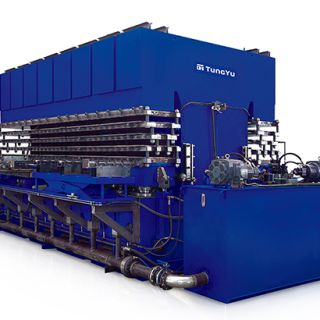

Precure Tread Vulcanizing Press (Double-shuffle and Multi-layer)
-
TPS-1300-2-PCD-4L
• Clamping Force : 1300 tons
• Multi-layer design performs high efficiency.
• Multiple cylinders controlled by precise hydraulic oil circuit, to ensure synchronizing movement.
• Utilize FEA (Finite Element Analysis) to make sure structure safety.
• Multi-layer design performs high efficiency.
• Multiple cylinders controlled by precise hydraulic oil circuit, to ensure synchronizing movement.
• Utilize FEA (Finite Element Analysis) to make sure structure safety.
| Machine Type | TPS-300-2-PCD-6L | TPS-1300-2-PCD-4L | |
|---|---|---|---|
| Clamping Force (Each side) | ton | 300 | 1300 |
| Heating Platen | mm | W400 X L3750 X H60 | W700 X L6000 X H65 |
| No. of Heat Platen (Each side) | mm x pcs. | 7 | 5 |
| Daylight per Layer | mm | 100 | 120 |
| Stroke | mm | 600 | 480 |
| Max. Working Pressure | kg/cm² | 105 | 165 |
| Piston Diameter (Each side) | mm x pcs. | 250 X 6 | 355 X 8 |
| No. of Heat Layer (Each side) | layers | 6 | 4 |
