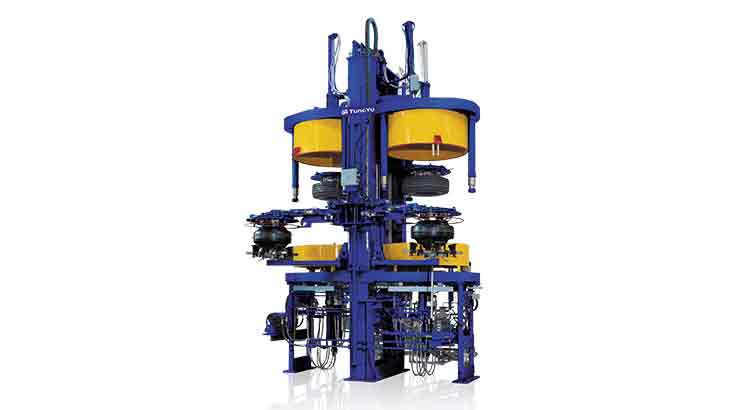

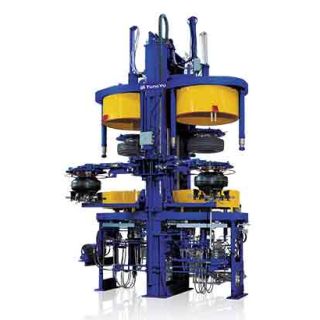

51 Inch Tire Curing Press
-
TPS-175-2-PCD-UP
• Clamping Force : 175 tons
• Equipped with hydraulic servo motor for energy saving, product quality stabilization and operation efficiency.
• Accurate loader and unloader mechanism with bumper function for excellent alignment.
• Heating platen with special channel design for temperature uniform distribution to provide best tire quality.
• Rear pneumatic inflator (option): After curing process, the inflation tire will be cooling and forming to prevent body from deformation and ensure quality.
• Equipped with hydraulic servo motor for energy saving, product quality stabilization and operation efficiency.
• Accurate loader and unloader mechanism with bumper function for excellent alignment.
• Heating platen with special channel design for temperature uniform distribution to provide best tire quality.
• Rear pneumatic inflator (option): After curing process, the inflation tire will be cooling and forming to prevent body from deformation and ensure quality.
| Machine Type | TPS-175 | |
|---|---|---|
| Clamping Force | ton | 80~175 |
| Heating Platen | mm | Ø1200 |
| Daylight | mm | 2427 |
| Stroke | mm | 1800 |
| Pulling Stroke | mm | 650 |
| No. of Mold | cav. | 2 |
| Raw Tire I.D. | inch | 13~20 |
| Mold O.D. | mm | 1020 |
| Mold Height | mm | 250~550 |
| Max. Working Pressure | kg/cm² | 210 |
| Max. Steam Pressure | kg/cm² | 15 |
| Max. Inner Pressure | kg/cm² | 25 |
| Dimension | mm | L4800 X W3871 X H6553 |
