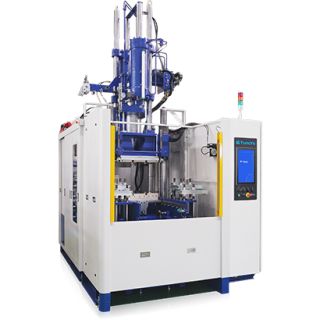

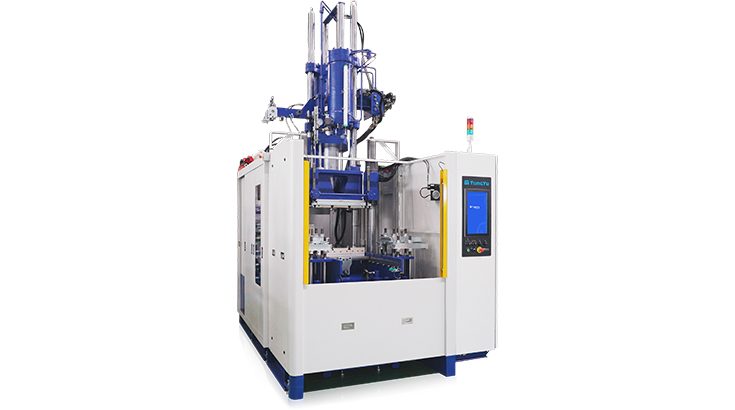

Vertical Rubber Injection Molding Machine(FIFO)

TIP-2000-3RT-L-250-PCD(FIFO)
FILO

• Clamping Force : 250 tons
• Injection Volume : 2000 c.c.
• Servo Hydraulic System,delivering high-precision, high-speed, and high-response dynamic control through the combination of hydraulic power and servo precision.
• Energy Monitoring System (EMS), gets real-time insights into your production energy consumption and easily saves energy.
• PC-base control system is adopted for the HMI, providing a highly integrated, flexible, and reliable solution.

Add to inquiry

Technical Specifications
Optional Features
Application Examples

Machine Type		TIP-L Vertical
Injection Unit
Injection Volume	c.c.	100	500	1000	2000	3000	3000
Injection Pressure	kg / cm²	1500~2000
Injection Flow	c.c. / sec	35	65	76	134	175	175
Clamping Unit
Clamping Force	tons	100	150	200	250	350	500
Heating Platen (L.R. X F.B.)	mm	400 X 400	450 X 500	450 X 500	570 X 610	700 X 700	800 X 800
Daylight	mm	250	400~600	450~650	500~650	500~700	500~700
Stroke	mm	250	350	350 / 400	400	400	400
Mold Thickness	mm	150	50~400	100~600	100~600	100~650	100~650

Remarks

(1) Min. injection volume can be 5 c.c.

(2) Clamping force and injection volume can be designed according to different requirement.

(3) Injection pressure between the range is regular design and we can support the others out of this range for optional.

From feeding and clamping to demolding, Tung Yu tailors solutions based on your product and mold design.
Our versatile systems adapt to a wide range of industries — engineered to handle every challenge with precision.

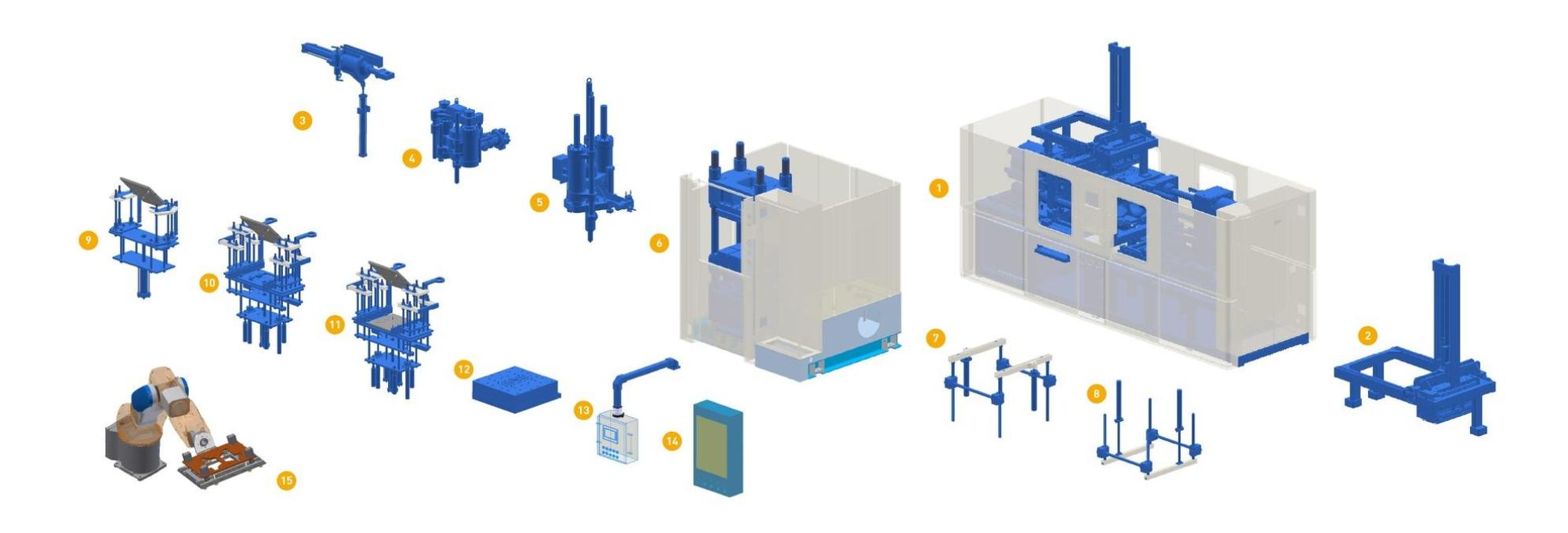

NO.	Mechanisms / Options	NO.	Mechanisms / Options
1	Horizontal Safety Fence	9	2-Layer Mold (2RT) Demolding Way
2	Cleaning Brush (Horizontal Type)	10	3-Layer Mold (3RT) Demolding Way
3	Auxiliary Feeding Mechanism	11	3RT with Lower Knock-Out Device
4	First-In Last-Out (FILO)	12	Cold Runner Mechanism
5	First-In First-Out (FIFO)	13	Suspension HMI Arm
6	Vertical Safety Fence	14	B&R PC Based Control System
7	Lower Mold Hanging Device	15	Robot Arm / Take-out Robot
8	Upper Mold Hanging Device
