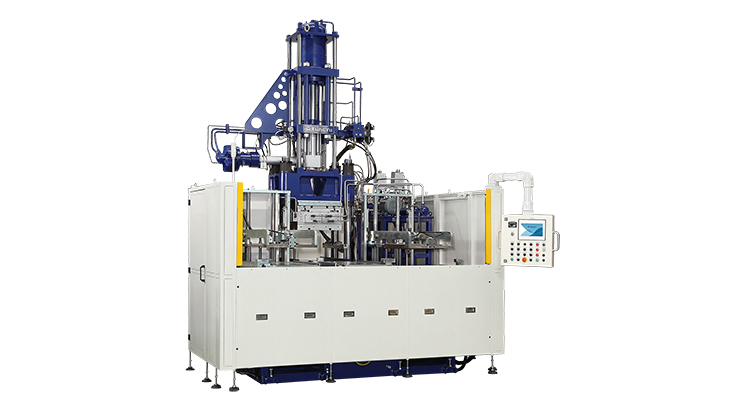

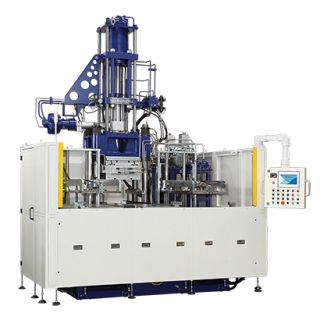

Double Molds Injection Molding Machine(FILO)

TIP-1000-2RT-L-250-PCD
FILO

• Clamping Force : 250 tons
• Injection Volume : 1000 c.c.
• Dual-shuttle automatic demolding mechanism enables continuous production with two sets of molds, significantly increasing machine uptime.
• Independent temperature control system for sliding plate maintains mold temperature during shuttling and demolding, shortening cycle time and improving production efficiency.
• Versatile cold runner system with melt temperature control can be attached to the molding machine and, with a one-time design, significantly reduces production costs.
• Cantilever-type flip plate design provides a large mold opening area for easy product removal and mold inspection.

Add to inquiry

Technical Specifications
Optional Features
Application Examples

Machine Type		TIP-L Vertical
Injection Unit
Injection Volume	c.c.	100	500	1000	2000	3000	3000
Injection Pressure	kg / cm²	1500~2000
Injection Flow	c.c. / sec	35	65	76	134	175	175
Clamping Unit
Clamping Force	tons	100	150	200	250	350	500
Heating Platen (L.R. X F.B.)	mm	400 X 400	450 X 500	450 X 500	570 X 610	700 X 700	800 X 800
Daylight	mm	250	400~600	450~650	500~650	500~700	500~700
Stroke	mm	250	350	350 / 400	400	400	400
Mold Thickness	mm	150	50~400	100~600	100~600	100~650	100~650

Remarks

(1) Min. injection volume can be 5 c.c.

(2) Clamping force and injection volume can be designed according to different requirement.

(3) Injection pressure between the range is regular design and we can support the others out of this range for optional.

From feeding and clamping to demolding, Tung Yu tailors solutions based on your product and mold design.
Our versatile systems adapt to a wide range of industries — engineered to handle every challenge with precision.

NO.	Mechanisms / Options	NO.	Mechanisms / Options
1	Horizontal Safety Fence	9	2-Layer Mold (2RT) Demolding Way
2	Cleaning Brush (Horizontal Type)	10	3-Layer Mold (3RT) Demolding Way
3	Auxiliary Feeding Mechanism	11	3RT with Lower Knock-Out Device
4	First-In Last-Out (FILO)	12	Cold Runner Mechanism
5	First-In First-Out (FIFO)	13	Suspension HMI Arm
6	Vertical Safety Fence	14	B&R PC Based Control System
7	Lower Mold Hanging Device	15	Robot Arm / Take-out Robot
8	Upper Mold Hanging Device
