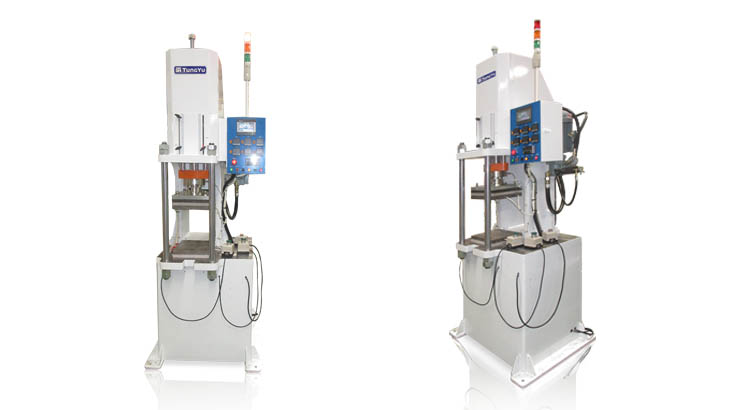

Hydraulic Servo System-Powder Forming Machine
-
TYC-10-PCD
• Compact Design :
Electrical cabinet positioned at the bottom of the machine, significantly win the floor space.
• Automation Expansion :
Easily integrates with automated equipment to enhance production efficiency.
• Pressure Control : Load cell for accurate output control with digital display and settings.
Intelligent monitoring and data collection are available as options.
• Optimized Structure : Extra connecting columns enhance clamping parallelism accuracy.
• Adjustable Platen Parallelism : To ensure consistent clamping accuracy.
• Cylinder Positioning : Scale indicators for easy, precise positioning.
Electrical cabinet positioned at the bottom of the machine, significantly win the floor space.
• Automation Expansion :
Easily integrates with automated equipment to enhance production efficiency.
• Pressure Control : Load cell for accurate output control with digital display and settings.
Intelligent monitoring and data collection are available as options.
• Optimized Structure : Extra connecting columns enhance clamping parallelism accuracy.
• Adjustable Platen Parallelism : To ensure consistent clamping accuracy.
• Cylinder Positioning : Scale indicators for easy, precise positioning.
| Machine Type | C frame | |
|---|---|---|
| Machine Size | mm x mm x mm | 900(w) x 790(L) X 2175(H) |
| Clamping Force | tons | 10 |
| Daylight | mm | 470 |
| Stroke | mm | 200 |
| Heating Media | Electric Heaters On Platen |
From feeding and clamping to demolding, Tung Yu tailors solutions based on your product and mold design.
Our versatile systems adapt across industries—built to handle every challenge with precision
| NO. | Mechanisms | NO. | Mechanisms |
|---|---|---|---|
| 1 | Shuttle Cylinder At Rear | 8 | Rail-Type Demolding Way |
| 2 | Shuttle Cylinder At Bottom | 9 | 2-Layer Mold (2RT) Demolding Way |
| 3 | Safety Fence | 10 | 3-Layer Mold (3RT) Demolding Way |
| 4 | Vacuum Chamber | 11 | 3RT with Dual Tilting Plate Mechanism |
| 5 | Bottom Ejector | 12 |
3RT with Dual Tilting Plate Mechanism & Lower Knock-Out Device |
| 6 | Air Jig Cylinder | 13 | 3RT with 90° Tilt & Upper Knock-Out Device |
| 7 | Top Ejector |
-
Advanced Application
