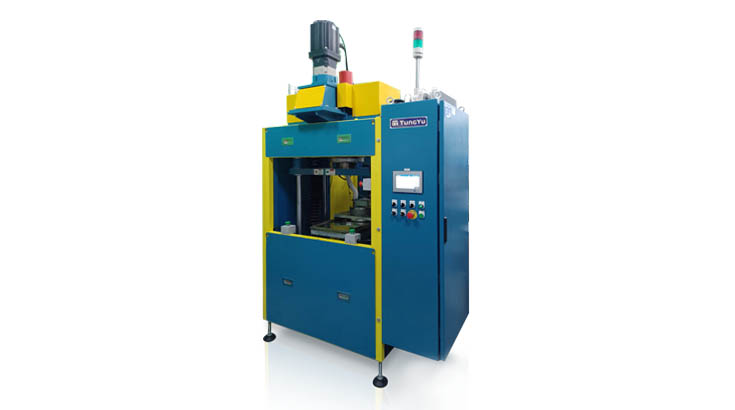

All Electric Servo Press - Powder Forming Machine
-
TYC-5-E-PCD
• Clamping Force : 5-50 tons
• Equipped with an independent servo control system, it utilizes servo-driven for precise positioning control, enabling fully automated cold and hot pressing processes.
• Energy-saving and precise force application, using clean energy to increase production capacity, is an optimized high-quality solution.
• Equipped with an independent servo control system, it utilizes servo-driven for precise positioning control, enabling fully automated cold and hot pressing processes.
• Energy-saving and precise force application, using clean energy to increase production capacity, is an optimized high-quality solution.
| Machine Specification | Unit | Value |
|---|---|---|
| Machine Size | mm x mm x mm | 1500(W) x 1485 (L) X 2625(H) |
| Clamping Force | tons | 5 (Max capacity up to 50 tons.) |
| Stroke (Upper Punch) | mm | 300 |
| Stroke (Bottom Punch) | mm | 200 |
| Daylight | mm | 482 |
| Perpendicularity | μm | 20μm / 150mm |
| Parallelism | μm | 20μm / 300mm |
| Machine Weight | Kg | 1760 |
| Screw Type | - | Ball Screw |
From feeding and clamping to demolding, Tung Yu tailors solutions based on your product and mold design.
Our versatile systems adapt across industries—built to handle every challenge with precision
| NO. | Mechanisms | NO. | Mechanisms |
|---|---|---|---|
| 1 | Shuttle Cylinder At Rear | 8 | Rail-Type Demolding Way |
| 2 | Shuttle Cylinder At Bottom | 9 | 2-Layer Mold (2RT) Demolding Way |
| 3 | Safety Fence | 10 | 3-Layer Mold (3RT) Demolding Way |
| 4 | Vacuum Chamber | 11 | 3RT with Dual Tilting Plate Mechanism |
| 5 | Bottom Ejector | 12 |
3RT with Dual Tilting Plate Mechanism & Lower Knock-Out Device |
| 6 | Air Jig Cylinder | 13 | 3RT with 90° Tilt & Upper Knock-Out Device |
| 7 | Top Ejector |
-
