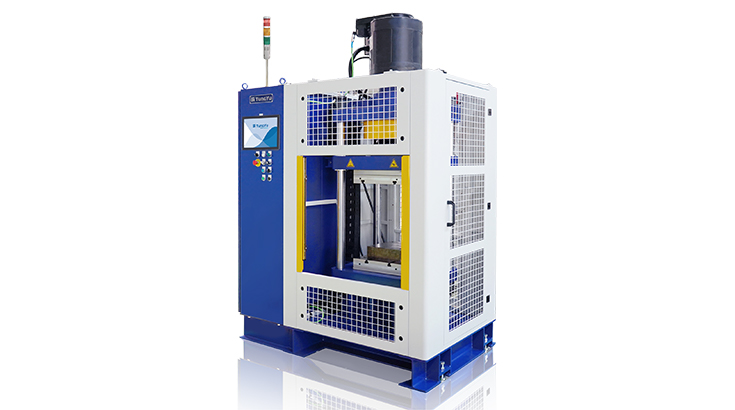

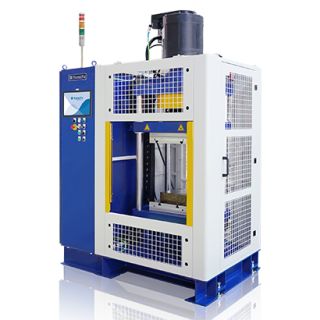

All Electric Servo Compression Molding Machine

TYC-30-E-PCD-UP

• Clamping Force : 30 tons
• "High torque at low speeds & hollow shaft" servo motor directly connects the ball screw to offer a gearless drive technology.
• High accuracy in both force and position, achieving high energy efficiency with low maintenance costs.

Add to inquiry

Technical Speaifications
Optional Features
Application Examples

Machine Type		TYC-V-10	TYC-V-12	TYC-V-14	TYC-V-16	TYC-V-18	TYC-V-22
Clamping Force	ton	100	150	200	250	350	500
Heating Platen Size (L.R. × F.B.)	mm	405 × 430	450 × 480	505 × 510	570 × 610	700 × 700	700 × 700 / 800 × 800
Daylight (max.)	mm	300
Stroke (max.)	mm	250
Heater Capacity Per Station	kW	8.76	10.56	17.4	19.2	22.6	22.6 / 39.2
Connection Station Per Set	-	1, 2, 3, 4				1, 2
Turnover Degree	°	45°
Piston Diameter	mm	250	300	355	400	457.2	560
Vacuum Stroke	mm	160	160	160	200	200	200

From feeding and clamping to demolding, Tung Yu tailors solutions based on your product and mold design.
Our versatile systems adapt to a wide range of industries — engineered to handle every challenge with precision.

NO.	Mechanisms	NO.	Mechanisms
1	Shuttle Cylinder At Rear	8	Rail-Type Demolding Way
2	Shuttle Cylinder At Bottom	9	2-Layer Mold (2RT) Demolding Way
3	Safety Fence	10	3-Layer Mold (3RT) Demolding Way
4	Vacuum Chamber	11	3RT with Dual Tilting Plate Mechanism
5	Bottom Ejector	12	3RT with Dual Tilting Plate Mechanism & Lower Knock-Out Device
6	Air Jig Cylinder	13	3RT with 90° Tilt & Upper Knock-Out Device
7	Top Ejector
